Description
Featuring a blue back-lit LCD displaying system information, including error codes, the Voyager is engineered to be of world-class quality. Not only is it waterproof, but it is also equipped with advanced PWM technology suitable for 12V and 24V off-grid applications and compatible with four different battery types, including Lithium! Ensure your system's longevity and stay worry-free, as the Voyager also has you covered with multiple solar panel, battery, and controller protections.
If you have any questions regarding this product, please submit a case！
Key Features
- 12V/24V Battery Compatibility with Auto Recognition.
- Smart 4 Stage PWM charging: Bulk, Absorption, Float, and Equalization.

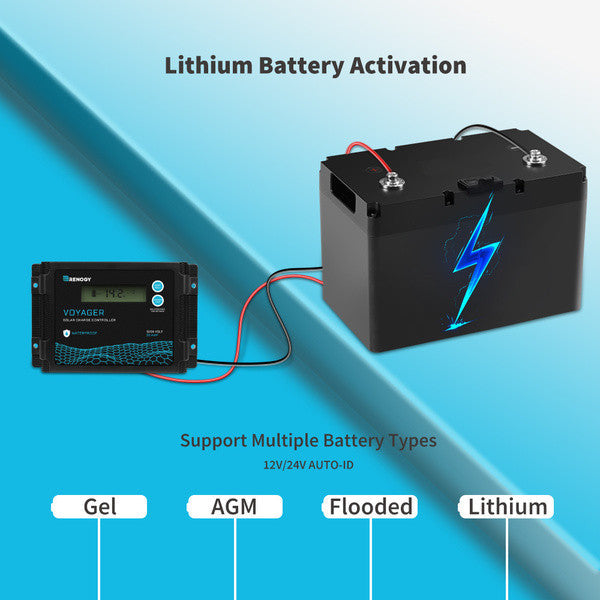

- 4 Battery Types Compatible – Sealed/AGM, Gel, Flooded, and Lithium batteries, with Lithium Awakening feature.

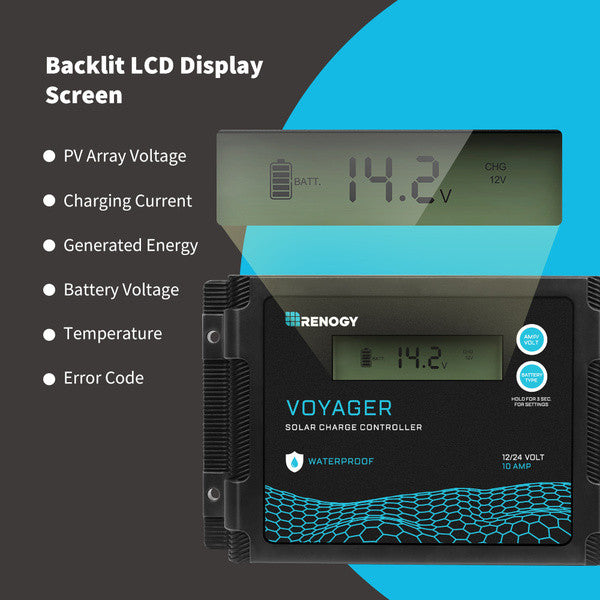

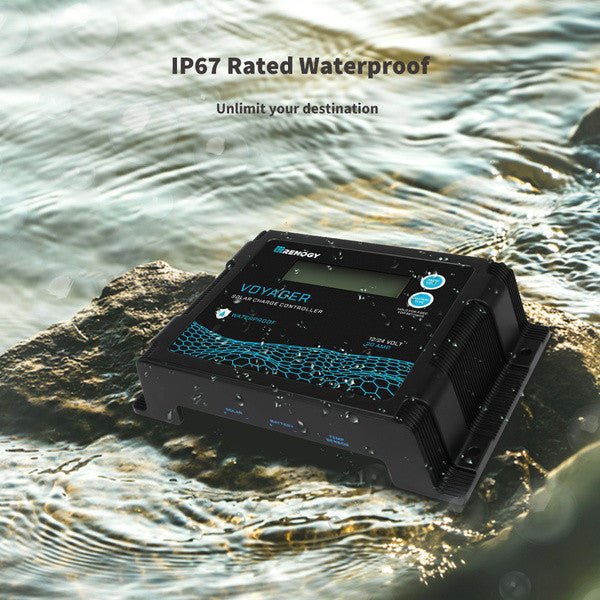

- Watertight design with backlit LCD display for system information, including error codes.

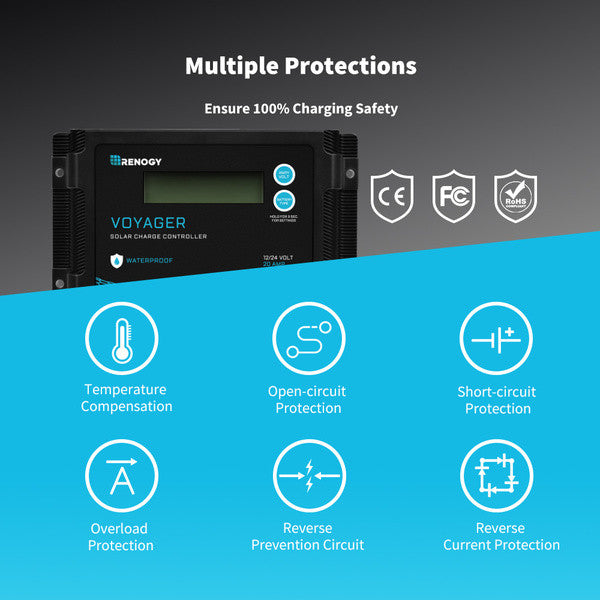

- Multiple protections for battery, controller, and solar panels, including reverse polarity and more.
Package Includes
|

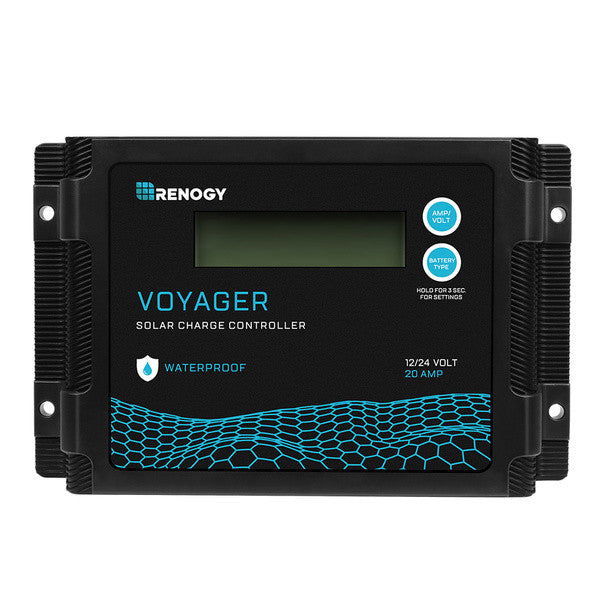

New Edition Voyager 20A PWM Waterproof Solar Charge Controller
1 x |
| Controller Type: PWM | Brand: Renogy |
| Amp: 20A | LCD SCREEN: Yes |
| Charge Controllers: Voyager | Nominal System Voltage: 12/24V Auto-Detection (For Non-Lithium Batteries) |
| Rated Charge Current: 20A | PV Input Voltage Range: 15V-55V |
| Max. Pv Open Circuit Voltage: 12V@25V 24V@55V | Max. PV Input Power: 12V @ 260W / 24V@520W |
| Battery Types: SLD/AGM, GEL, FLD. LI | Power Consumption: 12V @ 0.24W / 24V@0.74W |
| Max Battery Voltage: 32V | Ground Type: Positive |
| Electrical Protection: Battery/Controller over-temperature protection, PV/Battery reverse polarity, Over-voltage, Over-current protection | Communication Port: N/A |
| Protection Level: IP67 | Operating Temperature Range: -31°F - 113°F |
| Storage Temperature Range: -31°F - 167°F | Operating / Storage Humidity: 10%-90%, No Condensation |
| Temperature Compensation: -3mV/C/2V excludes LI | Dimensions: 6.08*3.83*1.40 in |
| Weight: 0.55Ibs | Max. Cable Size: 6 AWG |
| Controller Terminals: 20 - 6 AWG, 2-pin terminals | Temperature Sensor RTSVOY-US: 22AWG 10FT |
| Accessories: 2-year material warranty |
 |
 |
 |
